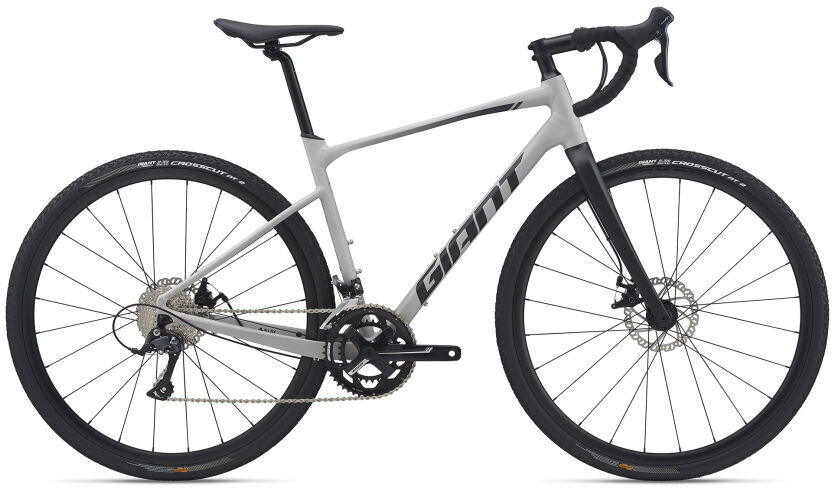

Gravel, dirt, and scenic backroads offer some of the best opportunities for freedom and adventure. This lightweight aluminum all-rounder is the perfect way to get away from it all and explore the places you’ve always thought about but never ridden.
Whether you ride dirt roads, trails, gravel, or a mix of everything, you want a bike that floats right through it, keeps you in control, and is comfortable for long days in the saddle. The Revolt delivers on all accounts. It features a lightweight ALUXX aluminum frame and composite fork, each engineered to balance stiffness and compliance. It comes with integrated components including the D-Fuse composite seatpost and Contact XR D-Fuse handlebar to further absorb road shocks and vibrations. The frame is integrated for disc brakes and it has clearance for larger tires up to 45mm.
Versatile gravel geometry
- Frame is designed with endurance positioning and shorter chainstays for precise handling, agility, and control. The result is confident speed in all situations, from out-of-the-saddle climbs to rugged dirt descents.
- Innovative Contact XR D-Fuse handlebar and D-Fuse seatpost work as a system to help absorb shock without sacrificing the stiffness needed for aggressive road performance. Added frame clearance for high-volume tires up to 45mm helps smooth out rough roads, gravel, and dirt.
- The ALUXX aluminum frame delivers efficient pedaling power and all-round versatility, giving you a smooth, fast ride quality on variable riding surfaces.
|Frame||ALUXX Grade Aluminum, disc|
|Fork||full composite, OverDrive steerer, disc|
Front: 100 x 12mm thru-axle
Rear: 142 x 12mm thru-axle
|Rims/Wheels||Giant S-X2 Disc wheelset|
|Hubs||Giant S-X2 Disc wheelset|
|Spokes||Giant S-X2 Disc wheelset|
|Tires||Giant CrossCut AT 2 Tubeless, 700x38c|
|Crankset||FSA Vero Pro|
|Bottom Bracket||FSA MegaExo, press fit|
|Chain||KMC X9 with Missing Link|
|Front Derailleur||Shimano Sora|
|Rear Derailleur||Shimano Sora|
|Cassette/Rear Cogs||Shimano CH-HG400, 11x34|
|Handlebars||Giant Contact XR Ergo-Control, 31.8|
|Brake Levers||Shimano Sora|
|Seat Post||Giant D-Fuse, alloy|
* Subject to change without notice.
|Trekking Green / X-Small||4712878608443||2102006223|
|Trekking Green / Small||4712878608450||2102006224|
|Trekking Green / Medium||4712878608467||2102006225|
|Trekking Green / Medium/Large||4712878608474||2102006226|
|Trekking Green / Large||4712878608481||2102006227|
|Trekking Green / X-Large||4712878608498||2102006228|
|Concrete / X-Small||4712878608320||2102006123|
|Concrete / Small||4712878608337||2102006124||210000014030|
|Concrete / Medium||4712878608344||2102006125||210000014782|
|Concrete / Medium/Large||4712878608351||2102006126||210000014403|
|Concrete / Large||4712878608368||2102006127||210000014087|
|Concrete / X-Large||4712878608375||2102006128||210000014392|
